Benzene: Kekulé vs. Resonating Structures

00 Introduction

In this tutorial, following the benzene calculation from the previous chapter, we handle a slightly more advanced task. Concretely, we will schematically estimate the energy difference between (i) the classical electronic description of benzene (the Kekulé structure) and (ii) the resonating aromatic structure (the correct delocalized picture). To do so, we first extract the carbon \(p_z\) orbitals that form the \(\pi\) electron cloud. All input and output files for this tutorial can be downloaded here.

01 Extracting carbon \(p_z\) orbitals and plotting molecular orbitals

From the obtained wavefunction file fort.10, we will construct the hybrid orbitals for each C and H atom. For the procedure to build hybrid orbitals (GEO method), please refer to Ref. [1].

Based on physical considerations, assign four hybrid orbitals to each carbon and one hybrid orbital to each hydrogen using:

turbogenius convertwf -to agps -nosym -hyb 4 1 4 1 4 1 4 1 4 1 4 1

This projects the wavefunction onto an AGP (Antisymmetrized Geminal Power) form based on hybrid orbitals rather than on atomic-orbital (AO) basis functions. You can visualize the generated hybrid orbitals with:

turbogenius plotorb

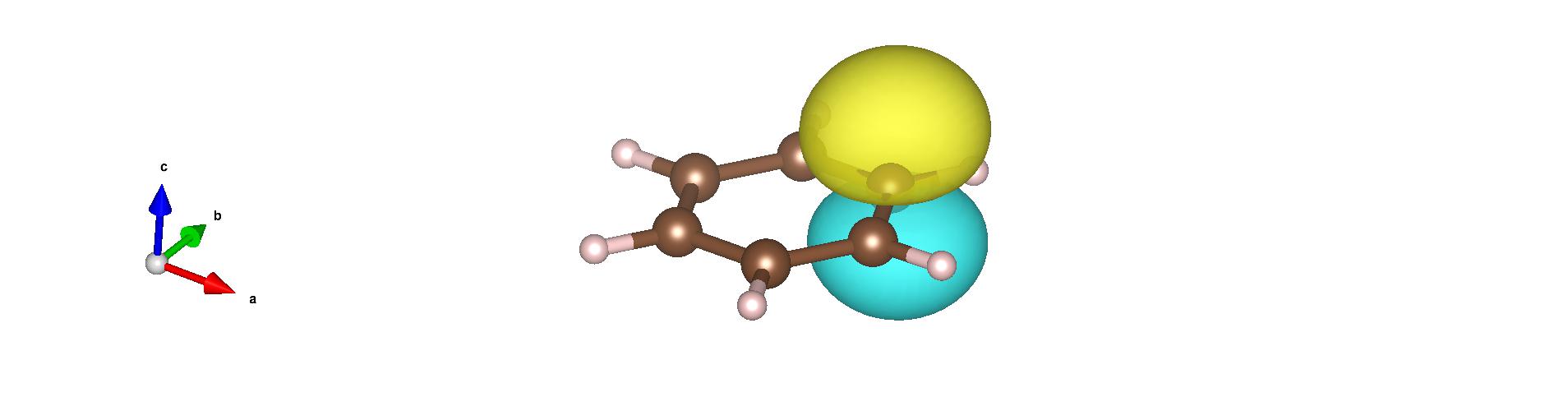

The obtained hybrid orbitals are visualized in XSF format, which can be visualized with VESTA.

../../../../_images/orbital_atom_1_hyb_2.jpg

From the generated .xsf files, you can identify the carbon \(p_z\) orbitals (which form the \(\pi\) cloud) as follows:

Identified carbon \(p_z\) hybrid orbitals

atom

hyb

lambda index

1

2

2

3

2

7

5

2

12

7

2

17

9

2

22

11

2

27

Note

In the AGP wavefunction in the hybrid-orbital representation, the pairing-function coefficients (the \(\lambda\) matrix) are defined with respect to these hybrid orbitals. Keep in mind that, in fort.10, the indices for the carbon \(p_z\) orbitals above are 2, 7, 12, 17, 22, 27.

02 Emulating the Kekulé structure

In the Kekulé picture of benzene, double and single bonds alternate around the ring. Interpreted in AGP pairing terms, this corresponds to finite \(\lambda\) couplings only for three carbon–carbon pairs, while the others are set to zero. We will enforce this pattern directly in fort.10.

cd ../11_Kekule_vmcopt
cp ../10_hybrid_orbitals/fort.10 .
cp ../10_hybrid_orbitals/pseudo.dat .
vi fort.10

  1. Locate the block starting with # Nonzero values of  detmat. This region lists the indices and values of the pairing (\(\lambda\)) matrix.

    To emulate the Kekulé structure, edit the pairs among the six \(p_z\) indices (2, 7, 12, 17, 22, 27) as:

    • 2–7 → keep as is (finite)

    • 7–12 → set to 0

    • 12–17 → keep as is (finite)

    • 17–22 → set to 0

    • 22–27 → keep as is (finite)

    • 27–2 → set to 0

    Edit these entries in the detmat list accordingly.

  2. Next, find the block starting with # Grouped par.  in the chosen ordered basis. Here, columns 2 and 3 are the pair indices (as above), and column 1 is the optimization flag: 1 = optimize, -1 = do not optimize (fixed).

    For the Kekulé pattern:

    • 2–7, 12–17, 22–27 → optimize (set flag to 1)

    • 7–12, 17–22, 27–2 → fixed to 0 (ensure value is 0 and set flag to -1)

    Concretely, keep only the following three lines with flag 1 and set all other entries’ first column to -1:

    1           2           7
1          12          17
1          22          27

03 Optimization (Kekulé)

After editing, run the wavefunction optimization in this directory (your usual VMC optimization workflow). Once optimized, evaluate the energy with the optimized wavefunction:

  1. Generate an input file for VMC optimization:

    cd ../11_Kekule_vmcopt
turbogenius vmcopt -g -opt_det_mat -optimizer lr -vmcoptsteps 50 -steps 400 -nw 128 -reg -0.005

  2. Run the VMC optimization, e,g, as follows:

    TURBOVMC_RUN_COMMAND="mpirun -np 16 turborvb-mpi.x"
export TURBOVMC_RUN_COMMAND

turbogenius vmcopt -r

  3. Perform the postprocess by typing:

    turbogenius vmcopt -post -optwarmup 30 -plot

Check plot_energy_and_devmax.png and the files in the parameters_graphs directory.

04 Energy evaluation (Kekulé)

Then, you can evaluate the energy.

cd ../12_Kekule_vmc
cp ../11_Kekule_vmcopt/fort.10 .
cp ../11_Kekule_vmcopt/pseudo.dat .

Next, generate an input file datasvmc.input using:

turbogenius vmc -g -steps 3000 -nw 128

Then, run the VMC calculation, e.g., by typing:

TURBOVMC_RUN_COMMAND="mpirun -np 16 turborvb-mpi.x"
export TURBOVMC_RUN_COMMAND

turbogenius vmc -r

Finally, run the postprocess:

turbogenius vmc -post -bin 20 -warmup 10

Check the reblocked total energy and error in the file pip0.d.

05 Emulating the fully resonating aromatic structure

Now set up the resonating (fully delocalized) \(\pi\)-bond picture by allowing all six nearest-neighbor \(p_z\) pairs to be optimized (finite):

cd ../13_Resonating_vmcopt
cp ../10_hybrid_orbitals/fort.10 .
cp ../10_hybrid_orbitals/pseudo.dat .
vi fort.10

For the six \(p_z\) indices (2, 7, 12, 17, 22, 27), enable optimization for all ring-adjacent pairs:

  • 2–7, 7–12, 12–17, 17–22, 22–27, 27–2

Thus, in the # Grouped par. block, keep these six lines with flag 1 and set all other entries’ first column to -1:

1           2           7
1           7          12
1          12          17
1          17          22
1          22          27
1          27           2

Note

Depending on how pairs are ordered in your fort.10, you may see (2, 27) instead of (27, 2). Use the six nearest-neighbor pairs consistently around the ring, matching your index ordering.

06 Optimization (Resonating)

Optimize this resonating AGP wavefunction, then evaluate the energy as in the Kekulé case.

  1. Generate an input file for VMC optimization:

    cd ../13_Resonating_vmcopt
turbogenius vmcopt -g -opt_det_mat -optimizer lr -vmcoptsteps 50 -steps 400 -nw 128 -reg -0.005

  2. Run the VMC optimization, e,g, as follows:

    TURBOVMC_RUN_COMMAND="mpirun -np 16 turborvb-mpi.x"
export TURBOVMC_RUN_COMMAND

turbogenius vmcopt -r

  3. Perform the postprocess by typing:

    turbogenius vmcopt -post -optwarmup 30 -plot

Check plot_energy_and_devmax.png and the files in the parameters_graphs directory.

07 Energy evaluation (Resonating)

Then, you can evaluate the energy.

cd ../14_Resonating_vmc
cp ../13_Resonating_vmcopt/fort.10 .
cp ../13_Resonating_vmcopt/pseudo.dat .

Next, generate an input file datasvmc.input using:

turbogenius vmc -g -steps 3000 -nw 128

Then, run the VMC calculation, e.g., by typing:

TURBOVMC_RUN_COMMAND="mpirun -np 16 turborvb-mpi.x"
export TURBOVMC_RUN_COMMAND

turbogenius vmc -r

Finally, run the postprocess:

turbogenius vmc -post -bin 20 -warmup 10

Check the reblocked total energy and error in the file pip0.d.

08 Comparing energies

With both Kekulé and resonating AGP wavefunctions optimized and their energies computed, compare the two total energies to obtain a schematic measure of the stabilization due to aromatic resonance in benzene.

  • Kekule: -34.6293(75) Ha

  • Resonating: -34.7682(76) Ha

Tip

  • Keep a clear record (e.g., a small table) of which \(\lambda\) pairs are optimized vs. fixed for each case.

  • Verify that pairs set to zero in the Kekulé setup remain exactly zero during optimization (i.e., flagged -1).

  • For reproducibility, retain the edited fort.10 files (or diffs) in version control.
